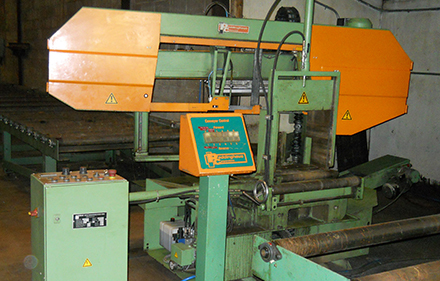

A Band Saw Machine consists of a long, continuous band of teethed metal that is stretched between two wheels.
The material being cut is placed on a table, and the band saw blade is lowered onto it to make the cut.
| Cutting range @ 45° | RL800 mm W x 520 mm H |
|---|---|
| Cutting range @ 90° | 1200 mm W x 520 mm H |
| Cutting range @ 30° | RL550 mm W x 520 mm H |
| Round at 90° | 620 mm W |
| Round at 45° | 560 mm W |
| Round at 30° | 520 mm W |
| Drive Motor | 14.5 kW |
| Saw Blade | 10,000 mm x 67 mmx 1.6 mm |
| Machine | Weight 6650 kg |
