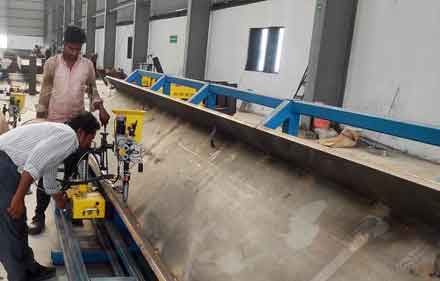

The SAW Welding Line is a high-tech, automated welding system used in the manufacturing of H-beams, I-beams, and other steel structures.
| Mains supply, Ph x V, Hz | 3 x 415, 50 |
|---|---|
| Input current at 415V, A (Max) | 107 |
| Input power at 60% duty cycle, kVA(Max) | 77 |
| Open circuit voltage, V DC | 30-60 |
| Welding current at 60% duty cycle, A | 1200 |
| Welding current at 100% duty cycle, A | 1000 |
| Insulation class | F |
| Type of cooling | Forced Air |
| Welding Head | Auto Weld Major (LW) |
| Wire (single) diameter range, mm | 2.4 — 5.0 (Standard), 6.3 (Optional) |
| Wire feed speed, cm/min | 50 - 450 |
| Welding current, A (continuous) | 1000 |
| Vertical adjustment, mm | 150 |
| Horizontal adjustment, mm | 150 |
| Swivel arrangement, Deg | 360° |
| Torch tilt, Deg | ± 45° |
| Speed range of tractor, cm/min | 0-150 |
| Hopper capacity, Kg | 10 |
| Wheel center of tractor, cm | 350 |
| Dimension, | x w x h, mm | 1368 x 410 x 1145 |
